IS-1325 ATC CNC Router
The IS-1325 ATC steps up from the base 1325 router with a linear automatic tool changer carrying 8 or 12 tools, so multi-step parts — drill, groove, profile-cut — run unattended without manual bit swaps. A 9.0 kW HQD air-cooled spindle at 0–24,000 RPM, Yaskawa servo drives, and a combined vacuum-and-T-slot table on the same 1300 x 2500 mm bed give it both the hold-down flexibility and the spindle power for continuous cabinet-door and high-mix production runs. Rapid traverse of 60 m/min keeps cycle times down between operations, and the standard 7.5 kW vacuum pump is sized for full-sheet suction across the bed.
Key Model Highlights
- Model: IS-1325 ATC CNC Router
- Working Area (X x Y x Z): 1300 x 2500 x 200 mm
- Table Size: 1300 x 2500 mm
- Table Type: Vacuum Table with T-Slot
- Spindle Power: 9.0 kW HQD Air Cooled
- Spindle Speed: 0 – 24,000 RPM
Immediate Factory Contact
Building a Reliable Technical Experience!
Ever since incorporation, NEXCNC has been manufacturing heavy-duty industrial machinery backed by transparent technical specifications and lifetime factory support.
Product Specification
Product Description
The IS-1325 ATC steps up from the base 1325 router with a linear automatic tool changer carrying 8 or 12 tools, so multi-step parts — drill, groove, profile-cut — run unattended without manual bit swaps. A 9.0 kW HQD air-cooled spindle at 0–24,000 RPM, Yaskawa servo drives, and a combined vacuum-and-T-slot table on the same 1300 x 2500 mm bed give it both the hold-down flexibility and the spindle power for continuous cabinet-door and high-mix production runs. Rapid traverse of 60 m/min keeps cycle times down between operations, and the standard 7.5 kW vacuum pump is sized for full-sheet suction across the bed.
Comparison & Selection Guidance:
Pick the IS-1325 ATC over the base IS-1325 when parts need more than one tool per run — cabinet doors with drilling, grooving and profile cuts in a single program are where the automatic changer earns its keep. Its 9 kW spindle also gives more headroom than the base model's 6 kW for denser materials or faster feed rates.
Installation & Factory Support:
Commissioning includes tool-changer calibration and magazine setup alongside standard bed leveling and 380V/3-phase hookup, since the ATC mechanism needs precise homing before production. Our engineers train operators on tool-library setup in your CAM software as well as the standard G-code workflow, and the machine is backed by warranty plus ongoing phone/video support.
Operational Scope & Limitations:
The ATC's tool magazine and linear changer add mechanical complexity over the base IS-1325 — for shops running mostly single-bit jobs (flat cutting, signage, simple engraving), that automation is unused capacity and the base model is the better fit. Like the rest of the 1325 line, it is built for wood, MDF, acrylic and composite sheet, not metal cutting.
Product Optional & Add-ons
Customize your IS-1325 ATC CNC Router with high-performance factory accessories and auxiliary systems.

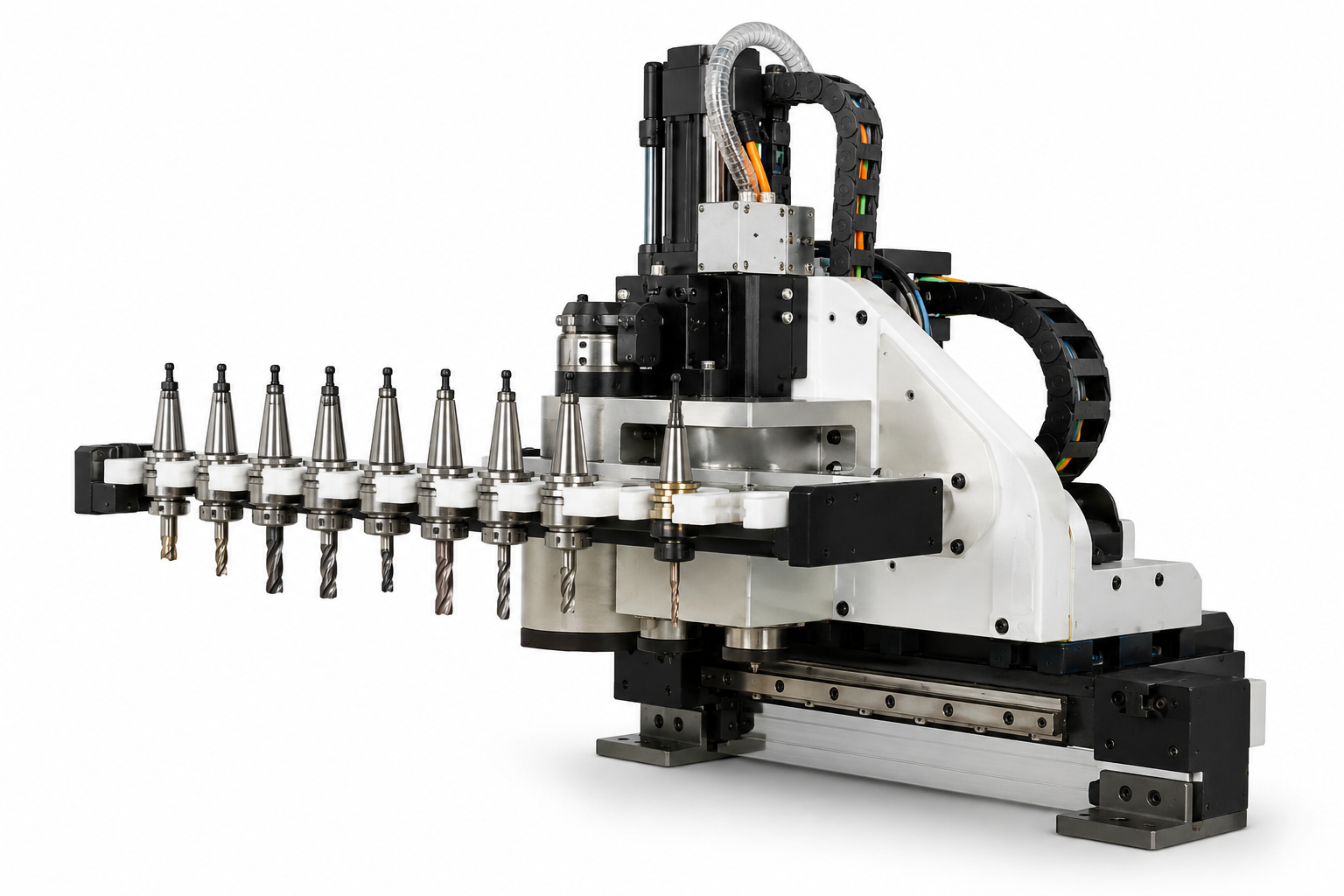

Automatic Tool Changer (ATC)
Read full description →

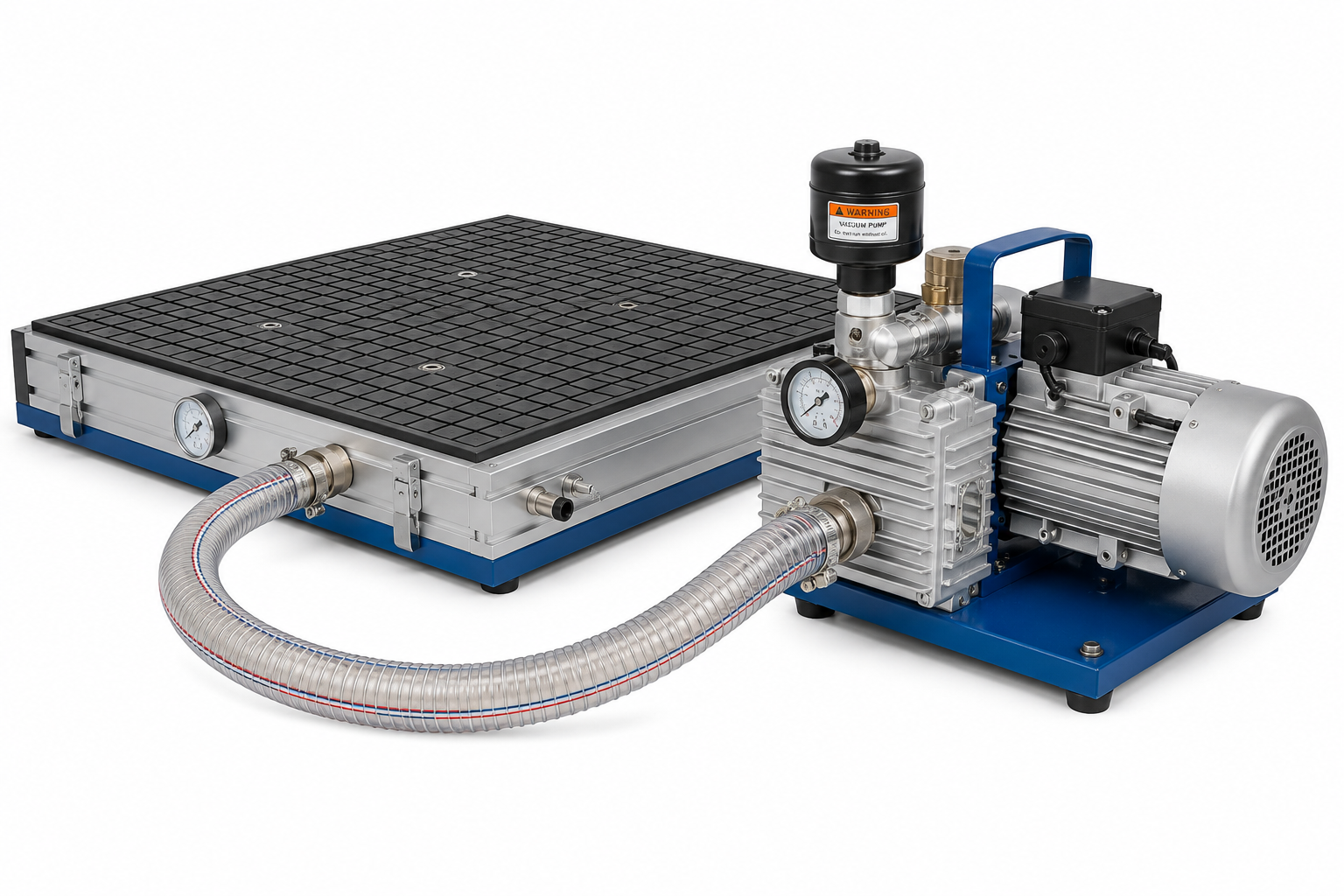

Vacuum Suction Bed & Pump
Read full description →

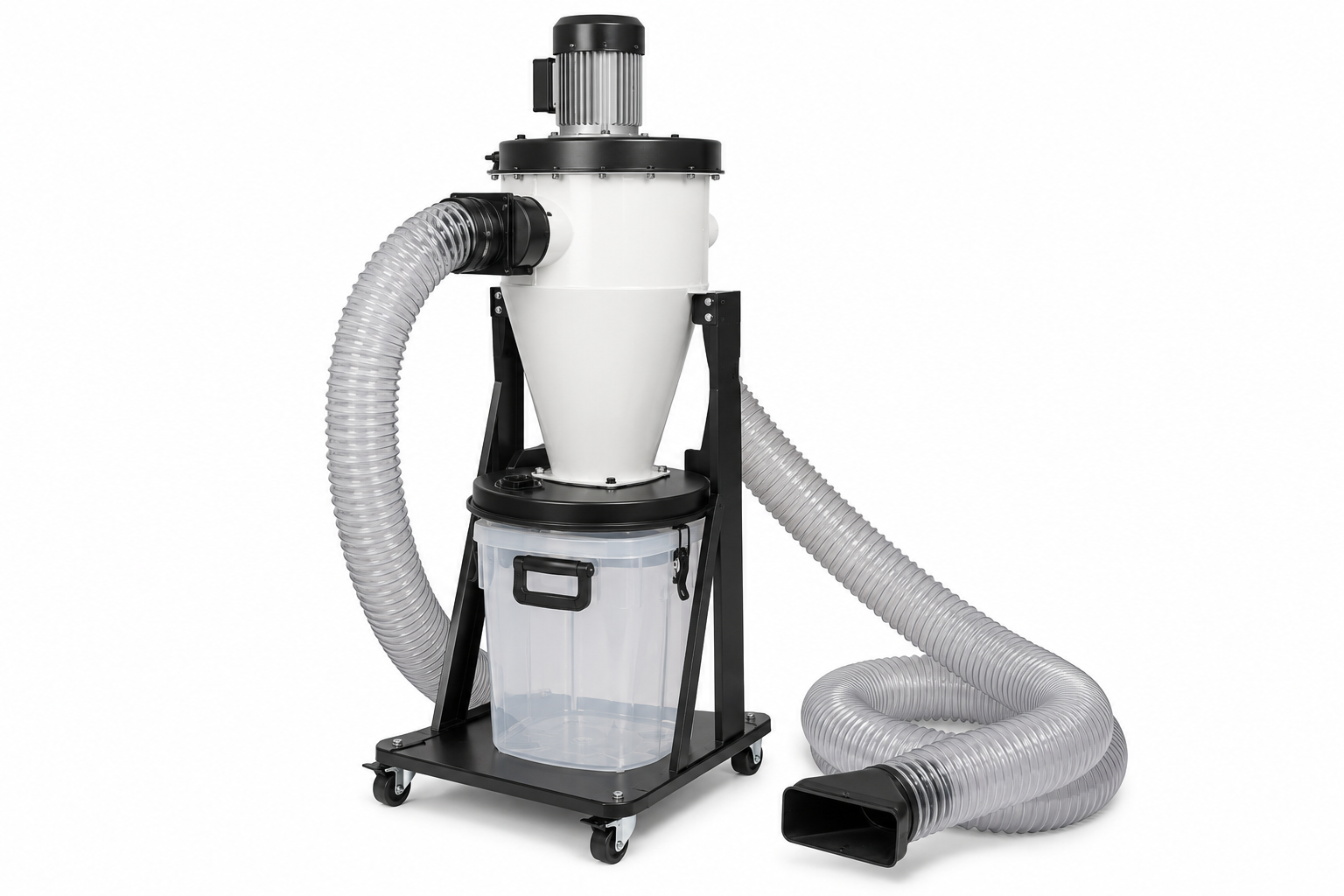

Dust Collection System
Read full description →

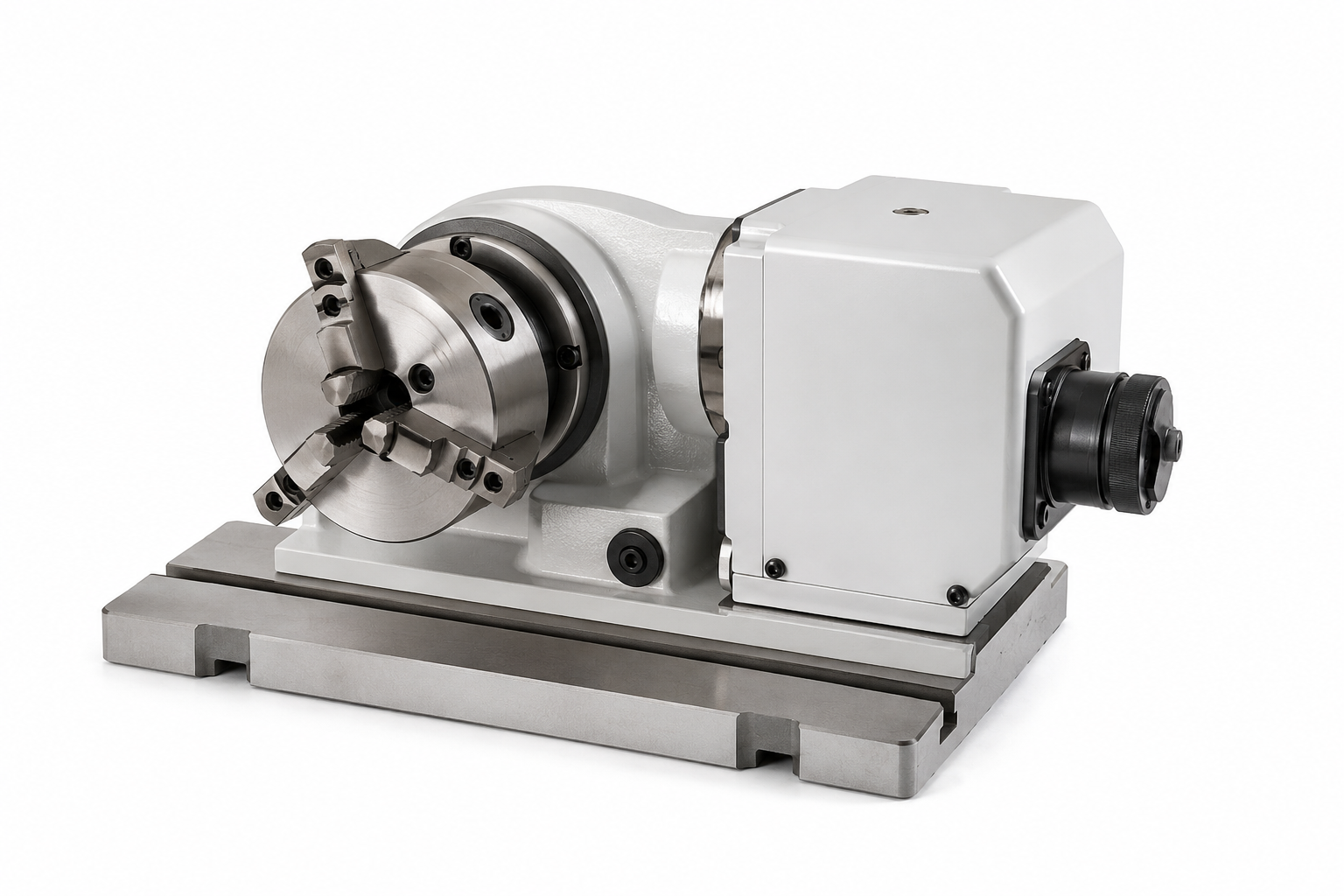

4th-Axis Rotary Attachment
Read full description →

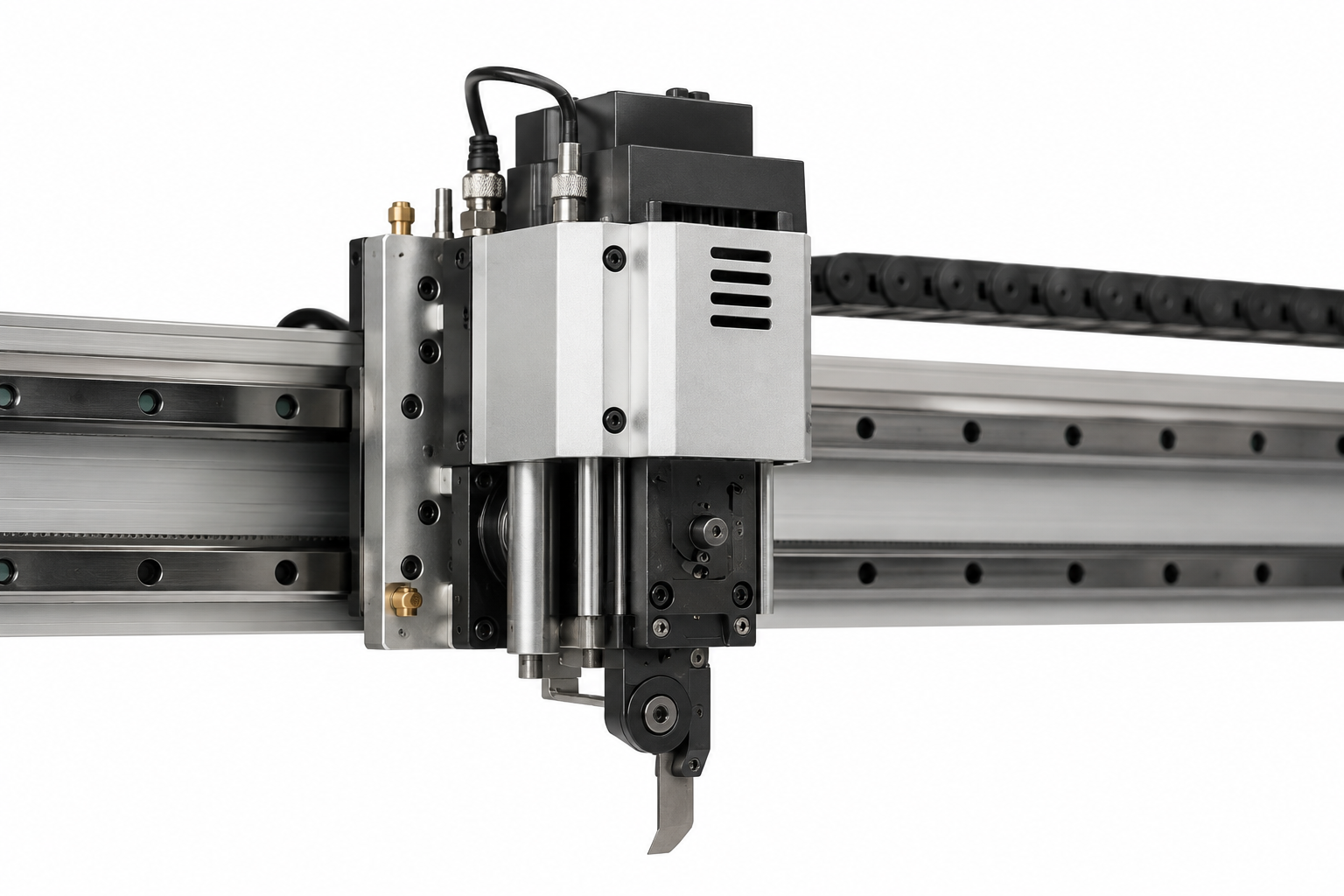

Oscillating Knife Cutting Head
Read full description →
Technical Specification
* Specifications are subject to continuous engineering improvements without prior notice.
Industries Served
Applications
Compatible Materials
Solid Wood
MDF / HDF
Plywood
Acrylic
PVC / WPC
Got Questions?
Frequently Asked Questions
Common queries about IS-1325 ATC CNC Router operation, technical specifications, and factory support.
How many tools does the ATC magazine hold?
8 or 12 tools (configuration selected at order), swapped automatically mid-program by the linear tool changer — no manual bit changes between operations.
Is the vacuum table standard on this model?
Yes — it ships with a combined vacuum-and-T-slot table and a 7.5 kW vacuum pump for full-sheet hold-down.
What's the difference between this and the base IS-1325?
The ATC adds automatic tool changing (8/12-tool magazine) and a stronger 9.0 kW spindle versus the base model's 6 kW manual-tool-change setup — it is built for multi-operation parts run back-to-back.
What drive system does it use?
Yaskawa servo motors and drivers on all axes, with helical rack-and-pinion on X/Y and ball screw on Z for repeatable positioning under continuous use.
