NEX-WCP-1204 Wood Cold Press Machine
The NEX-WCP-1204 is a 4-cylinder hydraulic cold press rated at 120 tons, built for laminating and bonding plywood, MDF, particle board and laminated board without heat — a cold-press bonding cycle rather than a heated hot-press process. The 2500 x 1300 mm working table and 1000 mm daylight opening handle standard sheet stock stacks, with hydraulic pressure of 55–60 kg/cm² delivered by a 5.5 HP / 4 kW pump motor across all four cylinders for even clamping force across the full panel.
Key Model Highlights
- Model: NEX-WCP-1204 Wood Cold Press Machine
- Capacity: 120 Ton
- Hydraulic Cylinders: 4 Cylinder
- Working Table Size: 2500 x 1300 mm
- Daylight Opening: 1000 mm
- Max. Pressing Pressure: 120 Ton
Building a Reliable Technical Experience!
Ever since incorporation, NEXCNC has been manufacturing heavy-duty industrial machinery backed by transparent technical specifications and lifetime factory support.
Product Description
The NEX-WCP-1204 is a 4-cylinder hydraulic cold press rated at 120 tons, built for laminating and bonding plywood, MDF, particle board and laminated board without heat — a cold-press bonding cycle rather than a heated hot-press process. The 2500 x 1300 mm working table and 1000 mm daylight opening handle standard sheet stock stacks, with hydraulic pressure of 55–60 kg/cm² delivered by a 5.5 HP / 4 kW pump motor across all four cylinders for even clamping force across the full panel.
The 120-ton, 4-cylinder configuration suits standard plywood and particle board lamination runs at 2500 x 1300 mm sheet size — for different panel sizes or tonnage requirements, confirm your typical stack size and adhesive cure profile at quotation, since press configuration is matched to production volume.
Installation includes hydraulic system commissioning, cylinder pressure calibration and a test press cycle before handover. Operators are trained on load-stacking, pressure setting and cycle timing for your specific adhesive and panel type, with manufacturer warranty and phone/video support ongoing.
This is a cold press — it does not include a heating system, so it is built for adhesives and processes that cure at ambient temperature, not heat-cured lamination. Control is manual, so cycle timing and pressure release are operator-managed rather than automated.
Product Optional & Add-ons
Customize your NEX-WCP-1204 Wood Cold Press Machine with high-performance factory accessories and auxiliary systems.

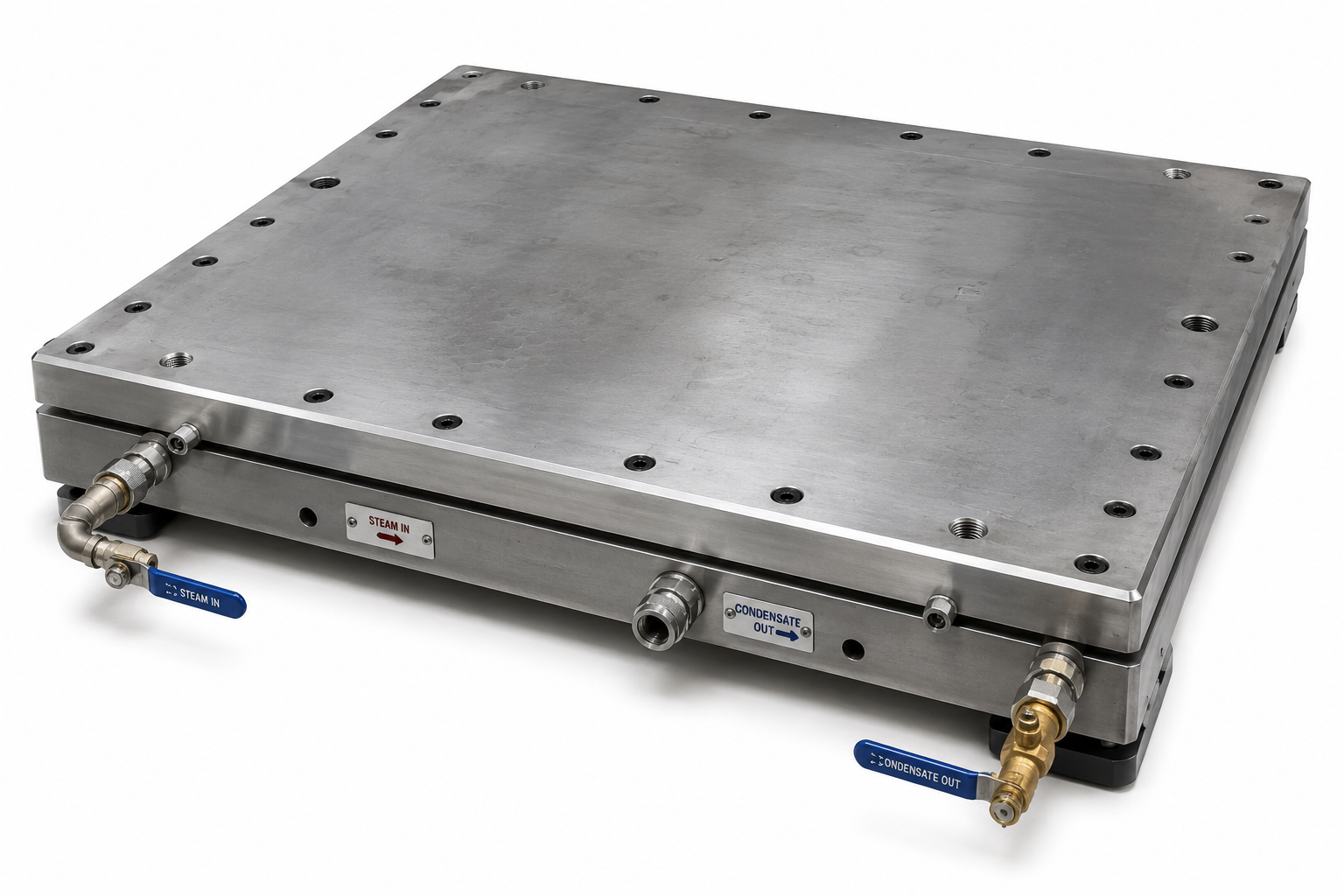

Steam Heating Plate System
Technical Specification
* Specifications are subject to continuous engineering improvements without prior notice.
Frequently Asked Questions
Common queries about NEX-WCP-1204 Wood Cold Press Machine operation, technical specifications, and factory support.
Does the NEX-WCP-1204 include heating?
What's the pressing capacity?
What materials can it laminate?
Is the control system automated?
Request a Quote for NEX-WCP-1204 Wood Cold Press Machine
Share your material, working thickness, and daily production targets — our factory team responds with custom pricing and technical guidance.
