NEX-FLCM-3015 Fiber Laser Cutting Machine
The NEX-FLCM-3015 cuts stainless steel, carbon steel, aluminium, brass and copper sheet on a 1500 x 3000 mm bed, powered by a Raycus fiber laser source available at 3.0 kW or 6.0 kW depending on the thickness and throughput you need. The 3.0 kW source cuts stainless steel up to 16 mm and carbon steel up to 20 mm; stepping up to 6.0 kW extends that to 25 mm on both, plus faster cycle times on thinner material. Positioning accuracy of ±0.03 mm/m with ±0.02 mm repeatability and up to 120 m/min positioning speed keep tight tolerances on precision sheet metal parts — enclosures, brackets, structural components — across metal fabrication, automotive and signage work.
Key Model Highlights
- Model: NEX-FLCM-3015 Fiber Laser Cutting Machine
- Laser Source: Raycus Fiber Laser Source
- Laser Power: 3.0 kW
- Working Area: 1500 x 3000 mm (Other sizes optional)
- X/Y Axis Positioning Accuracy: ±0.03 mm/m
- X/Y Axis Repeat Positioning Accuracy: ±0.02 mm
Building a Reliable Technical Experience!
Ever since incorporation, NEXCNC has been manufacturing heavy-duty industrial machinery backed by transparent technical specifications and lifetime factory support.
Product Description
The NEX-FLCM-3015 cuts stainless steel, carbon steel, aluminium, brass and copper sheet on a 1500 x 3000 mm bed, powered by a Raycus fiber laser source available at 3.0 kW or 6.0 kW depending on the thickness and throughput you need. The 3.0 kW source cuts stainless steel up to 16 mm and carbon steel up to 20 mm; stepping up to 6.0 kW extends that to 25 mm on both, plus faster cycle times on thinner material. Positioning accuracy of ±0.03 mm/m with ±0.02 mm repeatability and up to 120 m/min positioning speed keep tight tolerances on precision sheet metal parts — enclosures, brackets, structural components — across metal fabrication, automotive and signage work.
Choose the 6.0 kW source over 3.0 kW if you regularly cut stainless or carbon steel above 16–20 mm, or want faster cycle times on your existing thickness range — the higher power raises both cutting capacity and speed. For thinner sheet work (under 16 mm) where budget matters more than raw throughput, the 3.0 kW source covers the same working area at lower cost.
Installation includes water-cooling system commissioning, laser source calibration and cutting-parameter setup for your specific material mix, alongside standard bed leveling and 380V/3-phase power hookup. Operator training covers nesting software, cutting-parameter selection by material/thickness, and routine maintenance, backed by manufacturer warranty and ongoing phone/video support.
Cutting thickness scales with laser power — the 3.0 kW source is the more economical choice for sheet up to 16–20 mm, but thicker structural plate needs the 6.0 kW option; confirm your typical material thickness before choosing the source power. This is a metal-cutting machine and does not process wood, acrylic or other non-metal materials.
Product Optional & Add-ons
Customize your NEX-FLCM-3015 Fiber Laser Cutting Machine with high-performance factory accessories and auxiliary systems.

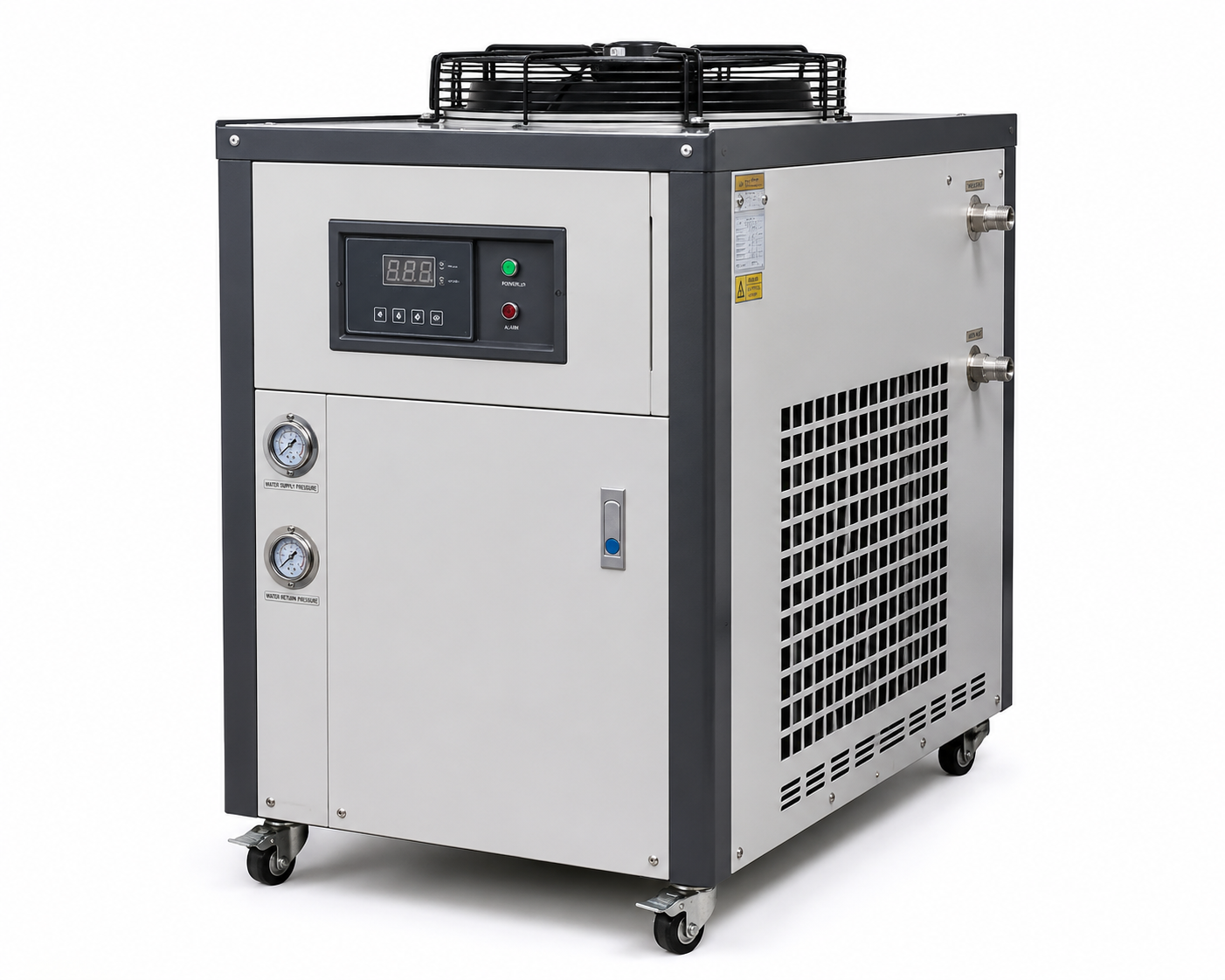

Industrial Chiller / Water Cooling Unit

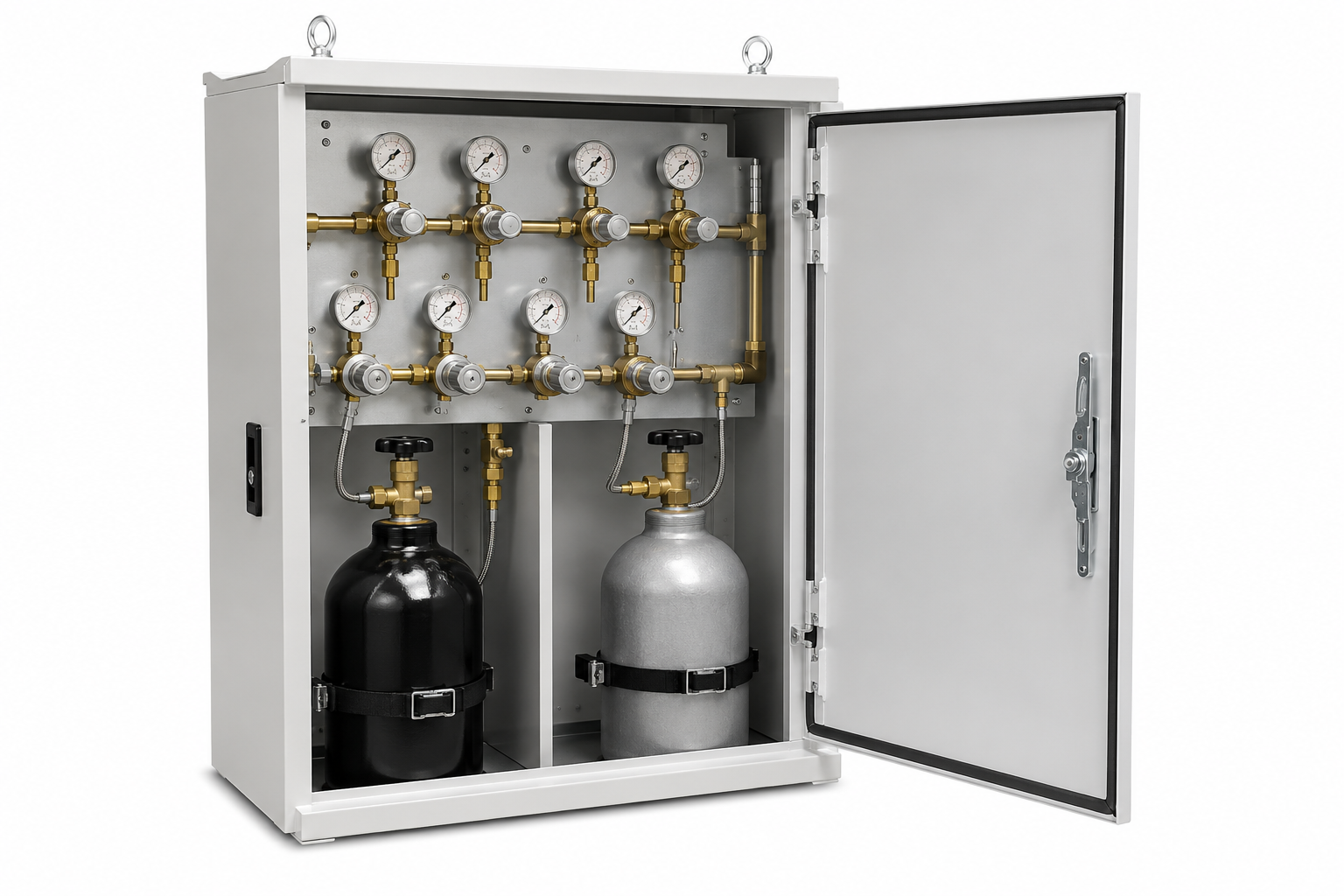

Nitrogen / Oxygen Gas Cabinet

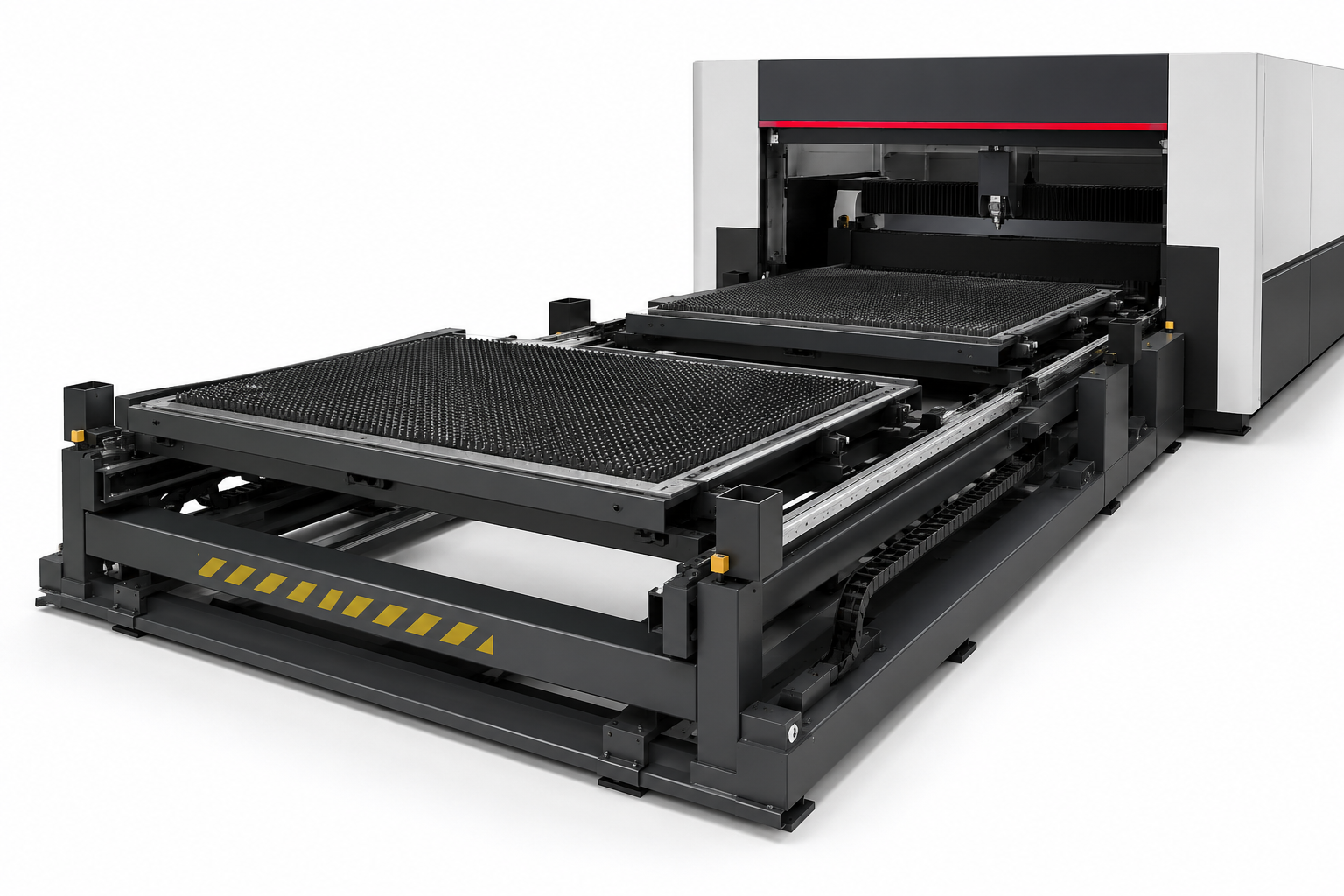

Exchange Table (Dual Pallet)

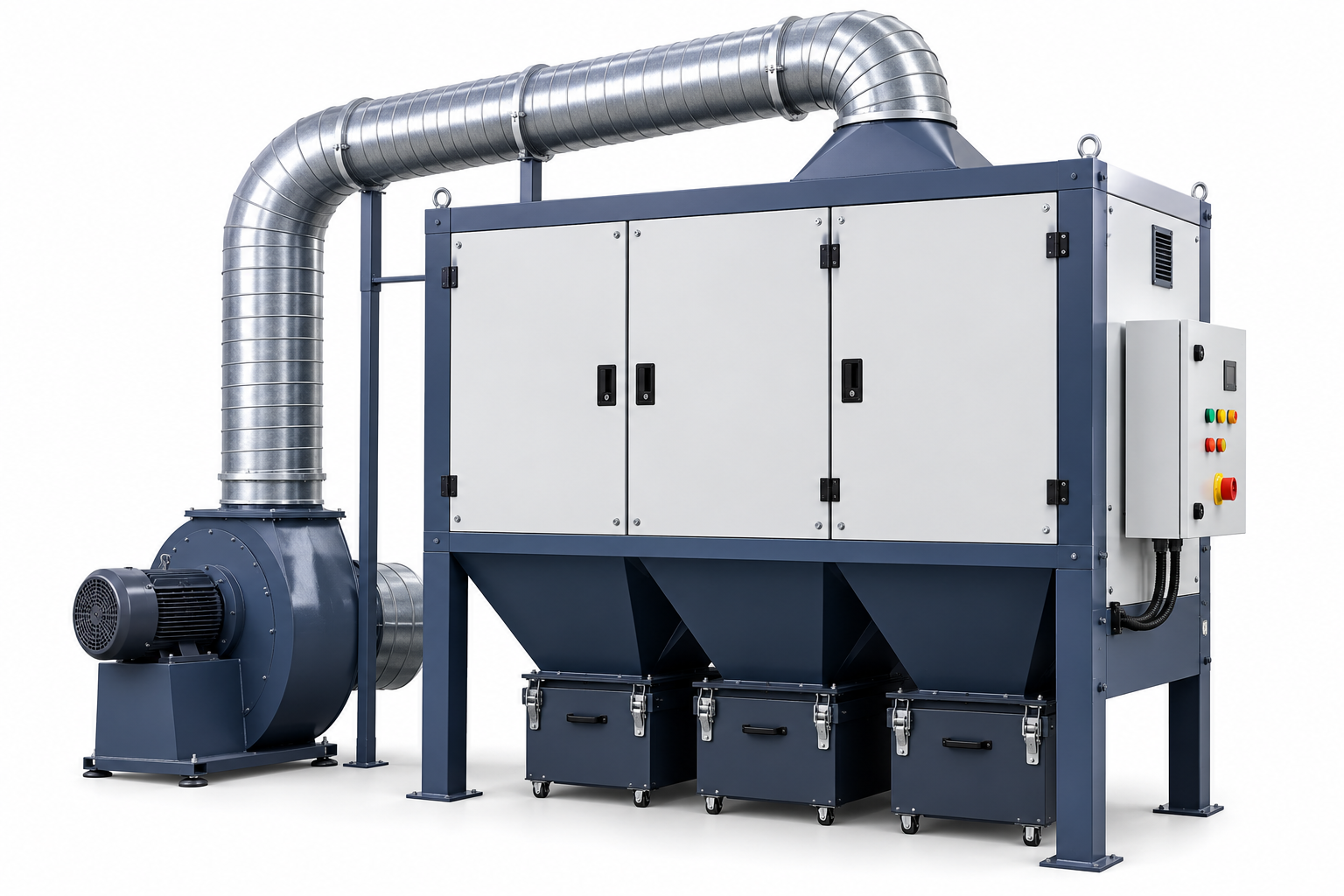

Fume Extraction System
Technical Specification
* Specifications are subject to continuous engineering improvements without prior notice.
Frequently Asked Questions
Common queries about NEX-FLCM-3015 Fiber Laser Cutting Machine operation, technical specifications, and factory support.
What metals and thicknesses can it cut?
What is the difference between the 3.0 kW and 6.0 kW versions?
How accurate is the cutting?
Does it need water cooling?
Request a Quote for NEX-FLCM-3015 Fiber Laser Cutting Machine
Share your material, working thickness, and daily production targets — our factory team responds with custom pricing and technical guidance.
Book a Demo for NEX-FLCM-3015 Fiber Laser Cutting Machine
See the machine run on your material — online walkthrough or an on-site visit at our factory.
Request a Sample Cut / Test
Send your material and specs — our factory runs a real test on NEX-FLCM-3015 Fiber Laser Cutting Machine and ships you the sample.
Download the NEX-FLCM-3015 Fiber Laser Cutting Machine Brochure
Enter your details and the brochure opens immediately in a new tab.
