CO₂ Laser Cutting & Engraving Machine
This CO₂ laser handles both cutting and engraving on wood, acrylic, MDF, leather, fabric, paper and glass, offered in three bed sizes — CL-9060 (900 x 600 mm), CL-1060 (1000 x 600 mm) and CL-1290 (1200 x 900 mm, the largest, also with the highest power ceiling at 150W). Laser power scales with bed size, from 60–100W on the CL-9060 up to 80–150W on the CL-1290, so larger-format work also gets more cutting power to match. Engraving runs up to 600 mm/s and cutting up to 40 mm/s, with water cooling and DSP control across all three sizes — a versatile choice for signage, craft, packaging and gift-industry shops cutting and decorating the same non-metal materials.
Key Model Highlights
- Model: CO₂ Laser Cutting & Engraving Machine
- Working Area (L x W): 900 x 600 mm
- Laser Power: 60W / 80W / 100W
- Laser Tube Type: CO₂ Glass Laser Tube
- Control System: DSP Control System
- Max. Engraving Speed: 0 – 600 mm/s
Building a Reliable Technical Experience!
Ever since incorporation, NEXCNC has been manufacturing heavy-duty industrial machinery backed by transparent technical specifications and lifetime factory support.
Product Description
This CO₂ laser handles both cutting and engraving on wood, acrylic, MDF, leather, fabric, paper and glass, offered in three bed sizes — CL-9060 (900 x 600 mm), CL-1060 (1000 x 600 mm) and CL-1290 (1200 x 900 mm, the largest, also with the highest power ceiling at 150W). Laser power scales with bed size, from 60–100W on the CL-9060 up to 80–150W on the CL-1290, so larger-format work also gets more cutting power to match. Engraving runs up to 600 mm/s and cutting up to 40 mm/s, with water cooling and DSP control across all three sizes — a versatile choice for signage, craft, packaging and gift-industry shops cutting and decorating the same non-metal materials.
Choose the bed size (CL-9060, CL-1060 or CL-1290) based on your typical material sheet size — CL-1290 also brings the highest available power (up to 150W) for thicker material or faster cutting. Compared with the dedicated CO₂ Laser Marking Machine, this model adds through-cutting capability at the cost of slower marking speed — pick this when you need both cutting and marking in one machine, or the marking-only model when marking speed matters more than cutting.
Commissioning includes water-cooling setup, laser alignment and a calibration cut/engrave test on sample material before handover, plus operator training on nesting and dual cut/engrave job setup. Manufacturer warranty and phone/video support apply.
Cutting speed (up to 40 mm/s) is lower than the marking-only CO₂ Laser Marking Machine's marking speed, reflecting the difference between cutting through material and marking its surface — for surface marking/engraving only, the dedicated marking machine is faster. Like all CO₂ lasers in this range, it does not cut metal.
Product Optional & Add-ons
Customize your CO₂ Laser Cutting & Engraving Machine with high-performance factory accessories and auxiliary systems.
.png)

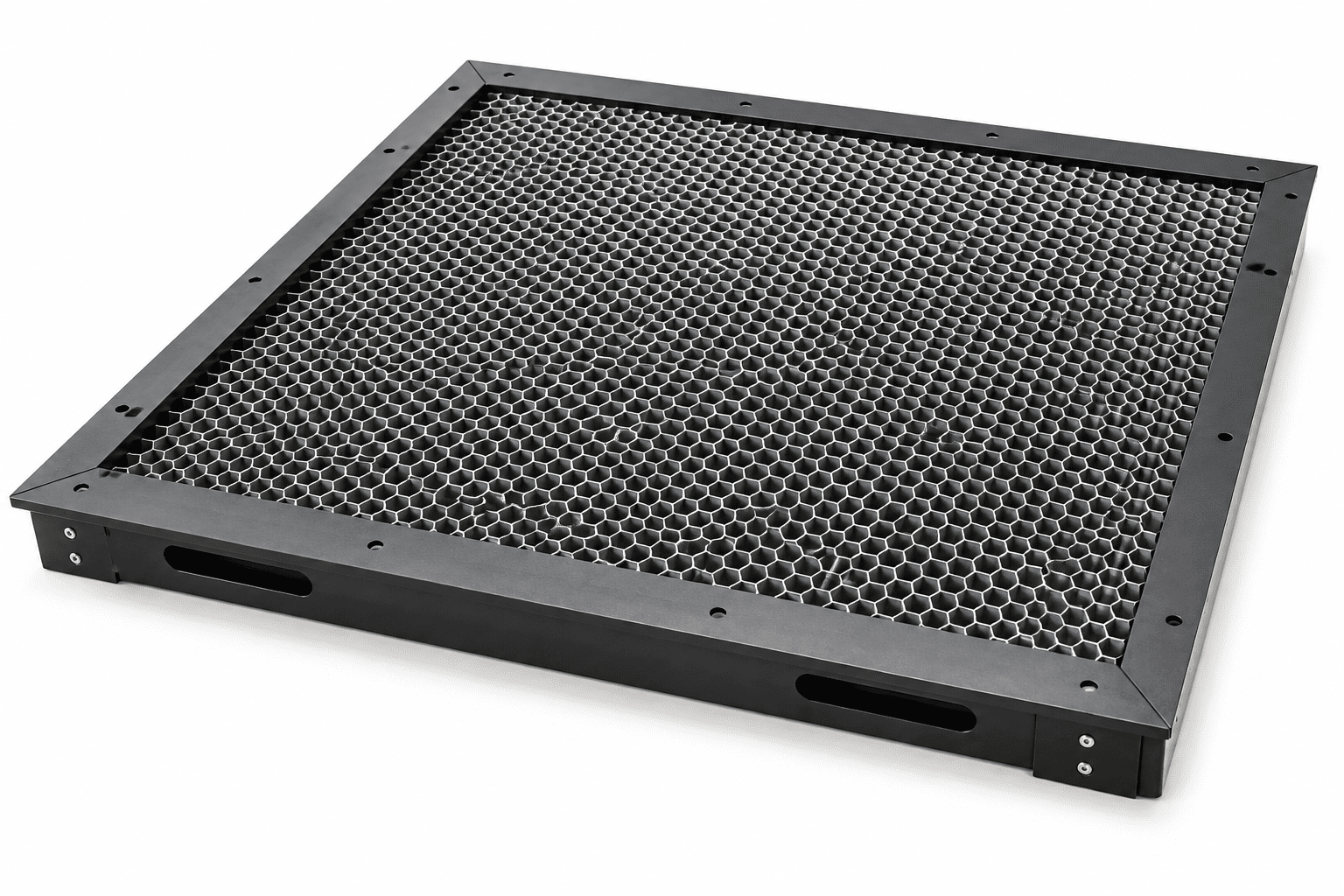

Honeycomb Working Table

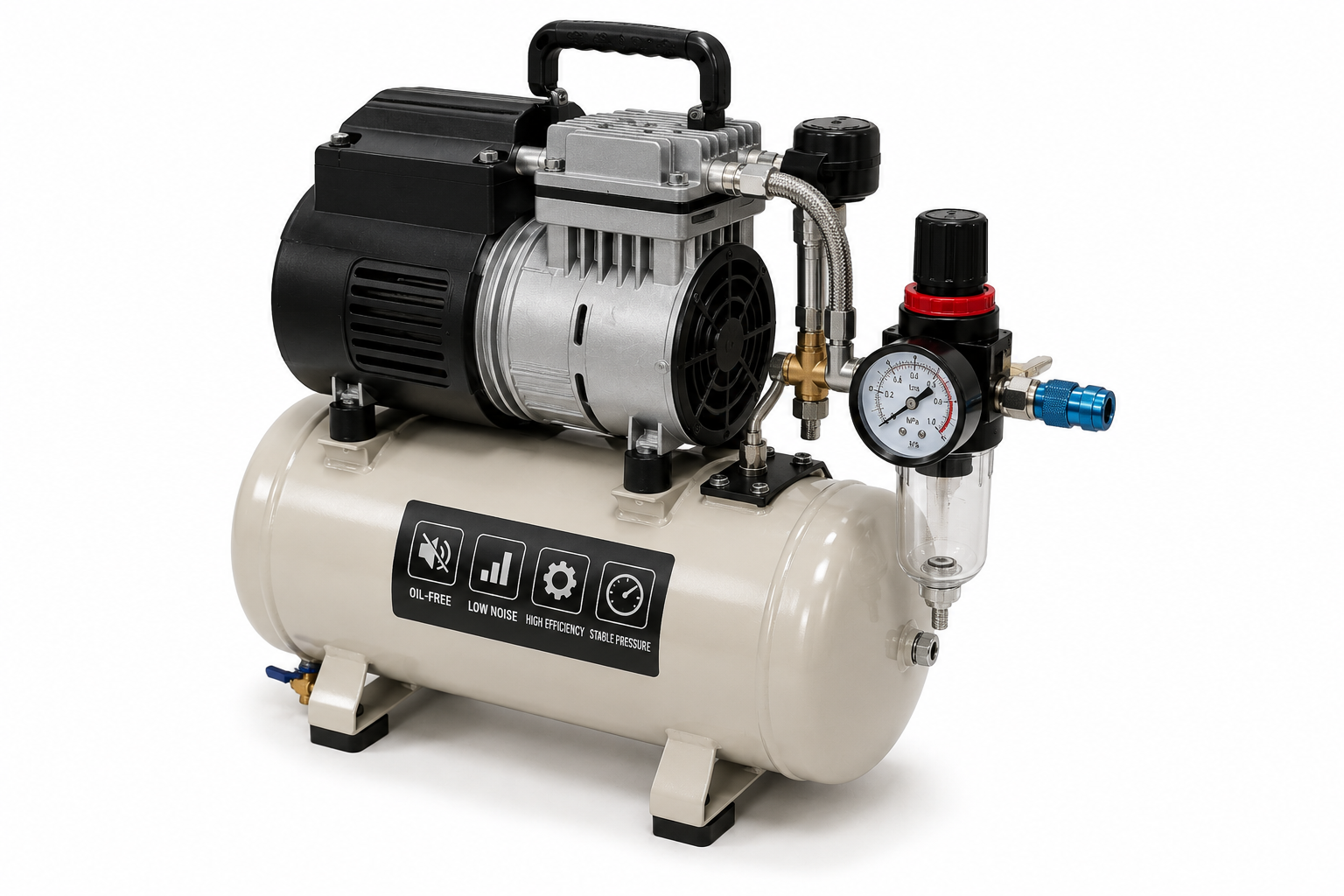

Air Assist Compressor

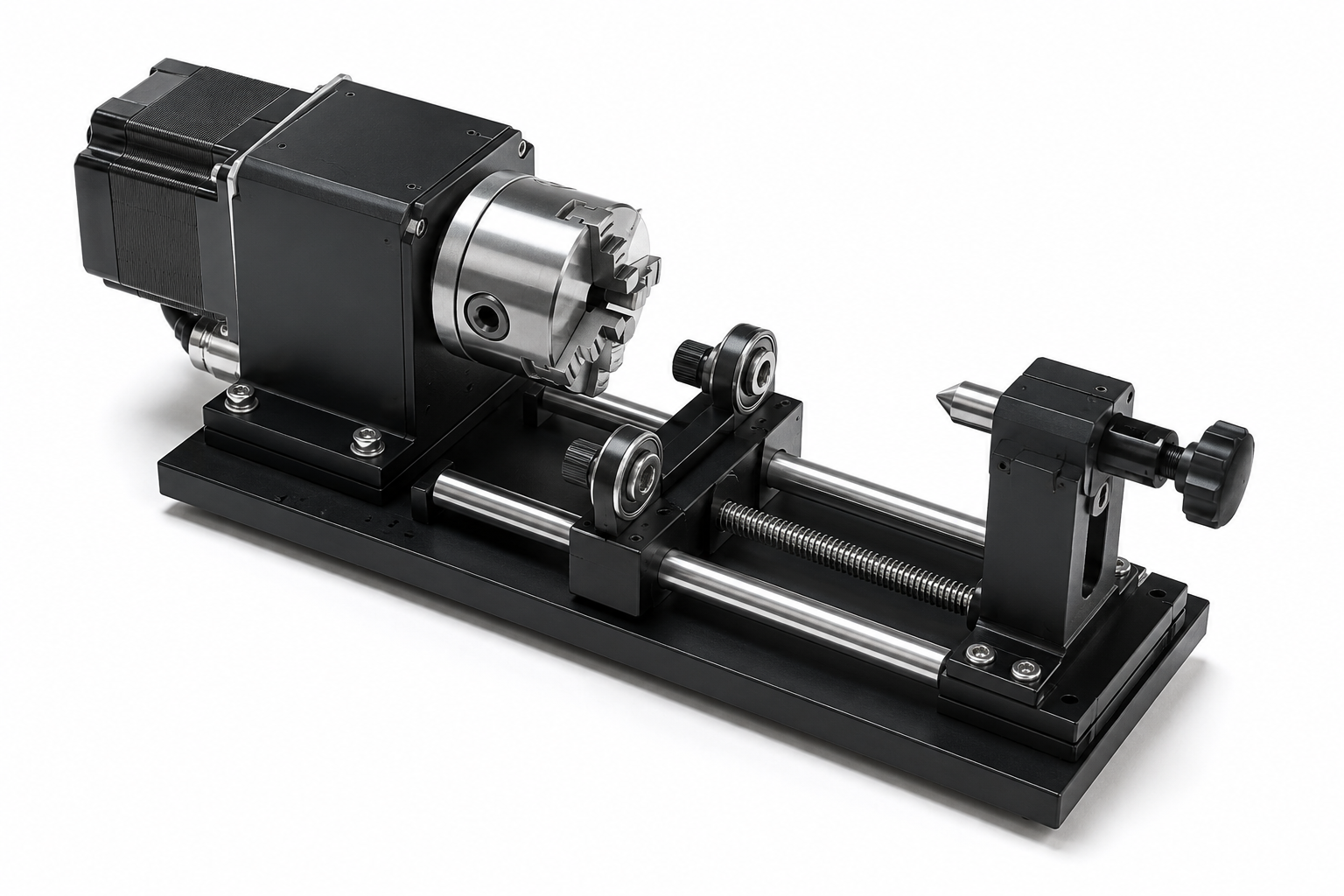

Rotary Attachment (Cylindrical)
Technical Specification
* Specifications are subject to continuous engineering improvements without prior notice.
